1975–77 Porsche 930 Turbo 3.0 Specifications

Complete technical specifications for the groundbreaking Porsche 930 Turbo produced from 1975 until 1977. The first production 911 with forced induction, setting the foundation for all future Porsche turbos.

Performance

0-60 mph 5.4 seconds
0-100 mph 13.4 seconds
1/4 mile 13.9 seconds @ 102 mph
Top Speed 157 mph (252 km/h)
Fuel Economy 8-12 mpg (city/highway)

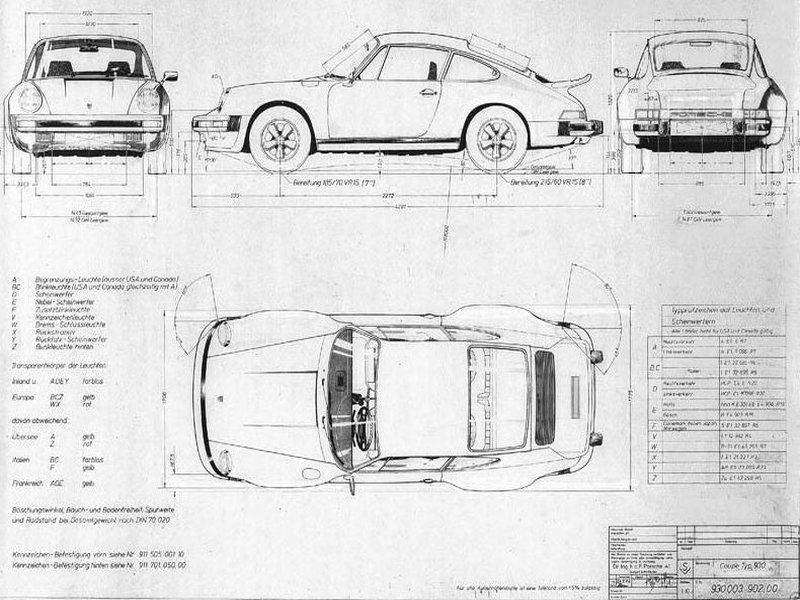

1975 Porsche 930 Turbo Technical Blueprint

Engine

Type Flat 6
Induction Turbocharged
Cooling Air/oil-cooled
Valvetrain Single overhead camshaft
Injection Port injection
Bore x Stroke 3.74 in/95 mm x 2.77 in/70.4 mm
Displacement 182.63 cu-in/2,994 cc
Horsepower 245 hp @ 5,500 rpm (NA)
260 hp @ 5,500 rpm (ROW)
Torque 253 lb-ft @ 4,000 rpm
Max RPM 7,000
Compression Ratio 6.5:1

Transmission

Gearbox 4-speed manual
Final Drive Limited slip differential (optional)
LSD Lock (1975) 80%
LSD Lock (1976-77) 40%

Chassis

Layout Rear-engined, rear-wheel drive
Curb Weight (DIN 70 020) 2,641 lbs
Weight (1975 only) 2,514 lbs
Length 168.94 in (4,291 mm)
Width 69.88 in (1,775 mm)
Height 51.97 in (1,320 mm)
Wheelbase 89.45 in (2,272 mm)
Ground Clearance 4.72 in (120 mm)

Suspension

Front Independent MacPherson struts
Front Springs Coil springs, telescopic shocks
Rear Independent semi-trailing arms
Rear Springs Torsion bars, telescopic shocks
Stabilizers Front and rear anti-roll bars

Brakes & Wheels

Front Brakes 11.1 in (282 mm) ventilated discs
Rear Brakes 11.1 in (282 mm) ventilated discs
ABS Not available
Front Wheels 7J x 15 Fuchs alloy
Rear Wheels 8J x 15 Fuchs alloy
Front Tires 185/70VR15
Rear Tires 215/60VR15
Optional Wheels 7J x 16 front, 8J x 16 rear
